Build parametric sheet notes
General notes repeat across sheets with small differences — a room name here, a date there. In SketchWeave you write a note once, drop in variables, and let each sheet fill in its own values.
Create a note
-
Open the main menu → Create Note
Click the canvas to place the note node. The hint reads "Create a reusable note; drag its connectors onto sheets to apply it."
-
Open the note editor
Double-click the note (or right-click → Properties) to open the editor.
-
Write the note
Type the note's text and give it a title. Formatting lives in the editor's toolbar.
Add variables
-
Name a variable
In the editor's Variables panel, type a name (say room) and click Add. Variables are project-wide, so any note can reuse them.
-
Insert a token
Put the caret where the value belongs and click Insert to drop a [room] token into the note. The token is atomic — it stays as one unit.
-
Repeat for each varying value
Add a token everywhere the wording changes from sheet to sheet.
Apply the note to sheets
-
Drag a connector onto a sheet

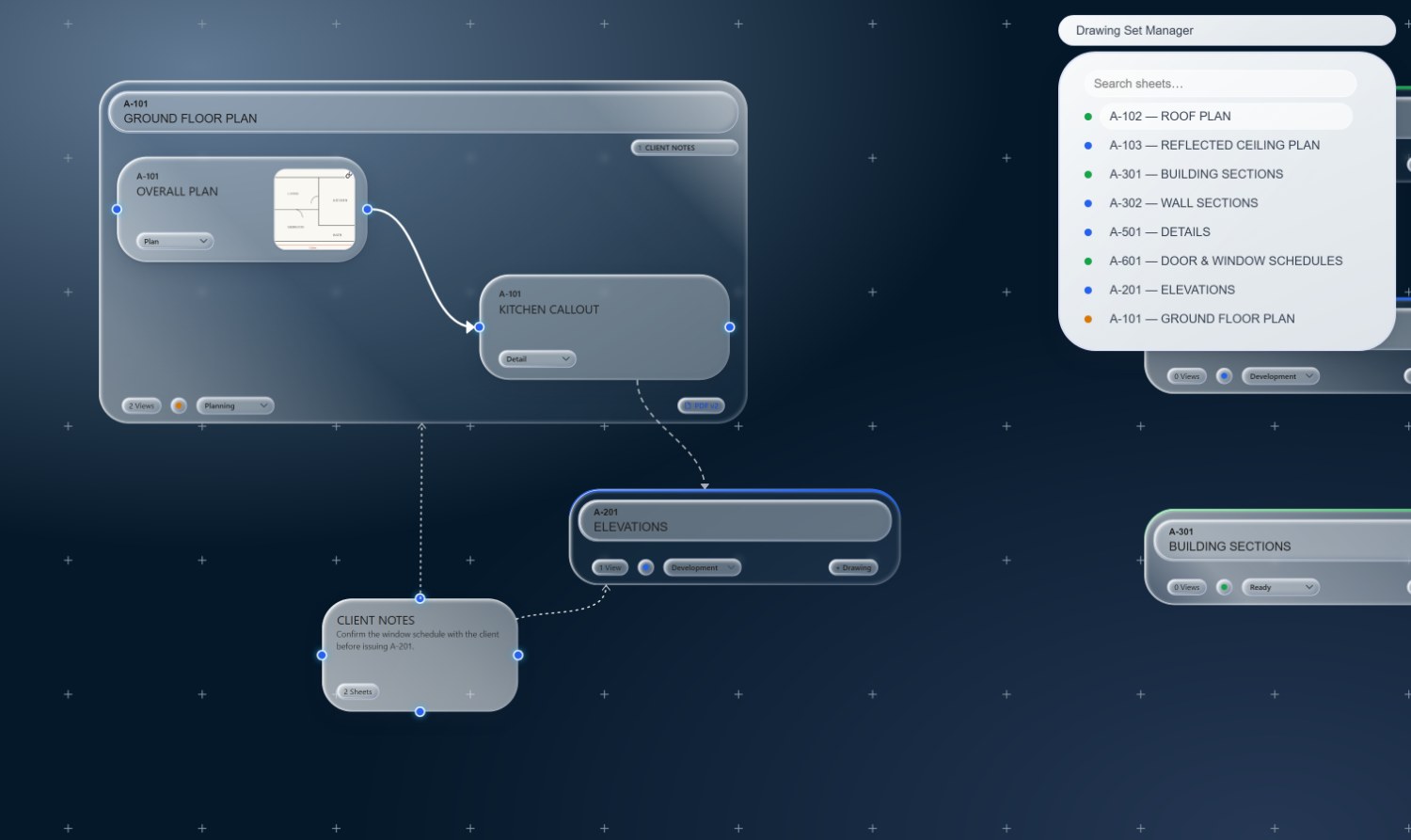

Drag from the note node's connector onto a sheet. The note joins that sheet's note stack.
-
Add it to every sheet that shares it
Repeat for each sheet. Reorder or remove notes per sheet from the sheet's note stack with the ▲ ▼ × controls.
Fill in each sheet's values
-
Open a sheet's properties
Double-click the sheet to open its properties.
-
Enter the value for each variable
Fill in this sheet's value, and its note preview resolves [room] to that value. Change the note's wording once and every sheet updates — each keeping its own values.
Write it once, reuse it everywhere
Parametric notes keep your general notes consistent — and update the whole set from one edit.
